Tube Finishing Equipment

10-220 mm OD x 0.5-8.2 mm thickness

We offer high technology, fully automatic, world class Tube Finishing Equipment, optional to install offline/online having high productivity to balance with tube production for various operations like chamfering, facing, hydro-testing, threading and bundling.

Tube End Facing Machines	:	Fixed & Movable Head Type
Tube Hydro-testing Machines	:	Single & Triple Tube Type
Tube Threading Machines	:	Fully Automatic Type up to 4” NB
Tube Bundling Machines	:	Fully Automatic with Weighing/Tag printing

Tube End Facing Machines

Fixed & Movable Head Type

Tubetech End Facing Machines are CAM operated, fully automatic, highly productive, , designed with three tool system for performing three operations, OD Chamfering, ID Chamfering & tube facing simultaneously.

Features:

Fixed & Movable Twin Head Type
Fully Automatic, CAM operated
Tube Transfer by Walking Beam System
Tube Clamping & Tool feed interlinked with CAM profile
Carbide/HSS Tooling
Quick Tool Change/Setting

Model	Tube OD (mm)		Tube Thickness (mm)		Max Output Rate (Tubes/min)
Model	Min	Max	Min	Max	Max Output Rate (Tubes/min)
TEF 050 S	12.7	50.8	1.0	4.0	20
TEF 090 S	21.3	88.9	1.6	5.0	17
TEF 115 S	21.3	114.3	1.6	6.0	17
TEF 165 S	60.3	165.1	2.0	8.0	5
TEF 220 S	88.9	219.3	3.0	10.0	4

Note: We also offer machines based on customised requirements.

Tube Hydro-testing Machines

Single & Triple Tube Type

Tubetech Hydro-Testing Machines are designed with automatic handling systems for high output rate and equipped with optional features to comply with API/ASTM/BS/IS standards.

Features:

OD Sealing Type
Oil & Water Intensifiers
Closed Circuit Blocking Head for balancing of end thrust
Quick Change Tooling
Continuous Chart Type Pressure Recorders
Computerized Data Acquisition System
Disc/Screw Roll/Chain cross transfer type tube feeding system

Model	No. of Test Heads	Tube OD (mm)		Tube Thickness (mm)		Max Output Rate (Tubes/min)
Model	No. of Test Heads	Min	Max	Min	Max	Max Output Rate (Tubes/min)
THT 075 S	1	12.7	76.2	1.0	4.0	3000
THT 115 S	1	21.3	114.3	1.6	6.0	3000
THT 115 T	3	21.3	114.3	1.6	6.0	3000
THT 165 S	1	60.3	165.1	2.0	8.0	5000
THT 220 S	1	88.9	219.3	3.0	10.0	5000

Note: We also offer machines based on customised requirements.

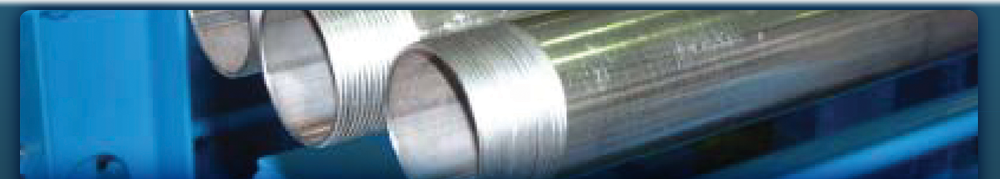

Tube Threading Machines

Fully Automatic Type up to 4” NB

Tubetech Threading Machines are based on well proven Japanese design with fully automatic operations, suitable for ASTM/BS/IS thread standard

Features:

Robust Design
Automatic Operation
High Production
Low Noise
Imported / Accurately manufactured Threading Heads
High Quality chasers for accurate threading
Quick tool change
Automatic Handling system

Model	Tube OD (mm)		Tube Thickness (mm)		Threads/Inch	Max Output Rate (Tubes/min)
	Min	Max	Min	Max
THT 115	21.3	114.3	2.0	5.4	11,14	8

Note: We also offer machines based on customised requirements.

Tube Bundling Machines

Fully Automatic with Weighing/Tag printing

Tubetech Bundling Machines are based on well proven Italian design with fully automatic/manual operations, suitable to install offline / online with existing / new high speed lines.

Features:

Suitable for round / square / rectangular tubes.
Quick changeover from round to section tubes
Regular / Irregular hexagonal bundles for round tubes
Square / Rectangular bundles for section tubes.
Automatic / Manual Strapping
Coolant evacuation, Bundle Weighing & Marking Systems
Customized & Flexible Conveyer Systems
Suitable for Offline / Online operation with different equipment

Model	Tube Shape	Bundle Shape	Tube Size (mm)		Tubes / Bundle		Max Bundle Size (mm)	Max Bundle Weight (kg)
Model	Tube Shape	Bundle Shape	Min	Max	Min	Max	Max Bundle Size (mm)	Max Bundle Weight (kg)
TBM 050	ROUND	HEXAGONAL	12.7	50.8	7	721	400 x 350	1000
TBM 050	SECTION	SQUARE RECTANGULAR	10x10	40x40	9	1400	400 x 350	1000
TBM 115	ROUND	HEXAGONAL	21.3	114.3	7	331	400 x 350	2000
TBM 115	SECTION	SQUARE RECTANGULAR	15X15	90X90	9	1400	600 x 520	2000

Note: We also offer machines based on customised requirements.
