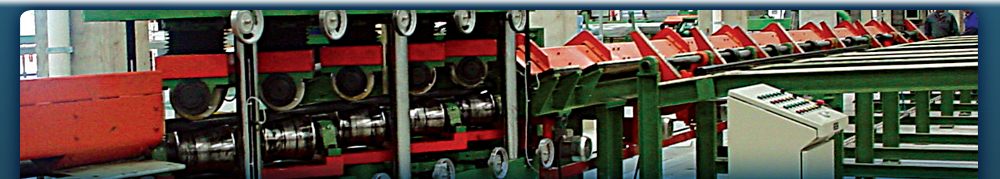

Cold Drawing Plant Equipment

10-115 mm OD x 0.7-10.0 mm thickness, up to 100 MT Force
We offer high technology, fully automatic, world class equipment for tube cold drawing plant. Our equipment are designed for perfect quality, high yield and precise applications having a wide range in tube diameter, tube thickness, push / pull force and operating speed.

Tube Push Pointing Machines: Hydraulic, Single/Double Push
Hydraulic, Single/Double Push Type

Tubetech Push Pointing Machines for pointing of tubes prior to cold drawing are noiseless and vibration free having many advantages over the conventional swaging machines, especially in terms of considerable material saving due to its unique feature of making perfectly round concentric points by elongating the point length while reducing the diameter, hence improving productivity & material yield.

Features:

  • Flexible point lengths
  • No loss of point in multi pass jobs
  • Fixed / rotary type multi sided gripper jaws
  • Common die for pointing and cold drawing
  • Special Software for Force Calculation
  • Automatic handling system
  • Machine Height Adjustable for different tube diameters

Technical Specifications:

Model Max Push Force No. of Dies Max Tube OD Point Length
TPP 015 S 15 MT 1 65 mm 50-150 mm
TPP 025 D 25 MT 2 90 mm 50-250 mm
TPP 035 D 35 MT 2 115 mm 50-250 mm
TPP 050 D 50 MT 2 115 mm 50-250 mm
TPP 070 D 70 MT 2 135 mm 50-250 mm
TPP 085 D 85 MT 2 150 mm 50-250 mm

Note: We also offer machines based on customised requirements.


Tube Drawing Benches
Automatic Single & Triple Tube Type

Tubetech draw benches for cold drawing of tubes are designed for precise applications, perfect quality and high yield. Single/Triple Tube Draw Benches are capable of drawings one/two/three tubes at a time depending on force requirement.

Features:

  • Automatic Tube feeding and discharge mechanism
  • Automatic plug positioning device to minimize handling time
  • Tube self aligning by swiveling die
  • Pneumatic / Hydraulic clamping arrangement
  • Clamps with special profiled tooth for perfect gripping
  • No loss of points for multi pass tubes
  • High Reduction Gear Box
  • Duplex/Triplex drive chain
  • Special Software for Force/speed Calculation

Technical Specifications:

Model No. of Tubes Max Pull Force Max Drawn Tube OD Max Drawn Length Max Drawing Speed
TDB 5 S 1 5 MT 25 mm 12 m 40 m/min
TDB 5 T 1/2/3 5 MT 25 mm 12 m 40 m/min
TDB 10 S 1 10 MT 40 mm 18 m 40 m/min
TDB 15 T 1/2/3 15 MT 50 mm 18 m 40 m/min
TDB 20 S 1 20 MT 60 mm 18 m 60 m/min
TDB 20 T 1/2/3 20 MT 60 mm 18 m 60 m/min
TDB 30 S 1 20 MT 90 mm 24 m 60 m/min
TDB 30 T 1/2/3 30 MT 90 mm 24 m 60 m/min
TDB 40 S 1 40 MT 110 mm 30 m 40 m/min
TDB 40 T 1/2/3 40 MT 110 mm 30 m 40 m/min
TDB 60 S 1 60 MT 140mm 18 m 30 m/min
TDB 80 S 1 80 MT 150 mm 18 m 30 m/min
TDB 100 S 1 100 MT 175 mm 12 m 20 m/min


Note: We also offer machines based on customised requirements.




Tube Straightening Machines
Fully Automatic, 6/10 Roll Type

Tubetech Straightening Machines for round tubes are multi cross roll type, based on well proven principle of rotation & deflection through hyperbolic profiled rolls mounted in pairs, hence delivering high degree of straightness up to 1 in 3000. A verity of optional features are offered to comply with customerís requirement.

Features:

  • Fixed / Variable Speeds
  • Built-in Dial Indicators for accurate settings
  • Digitally displayed Pressure indicators for highly accurate settings
  • Hydraulic lift of entry bottom roll for smooth tube entry
  • Paraffin oil feeding & collection system for lubrication
  • Automatic / Manual tube handling system

Technical Specifications:

Model Tube OD (mm) Max Thickness
(mm)
Max Speed
(m/min)
Straightness
Min Max
TST 025 6R 6 25 3.5 40 / 60 1 in 1000
TST 025 10R 6 25 3.5 40 / 60 1 in 3000
TST 040 6R 8 40 4.0 40 / 60 1 in 1000
TST 040 10R 8 40 4.0 40 / 60 1 in 3000
TST 080 6R 12 80 6.0 60 / 90 1 in 1000
TST 080 10R 12 80 6.0 60 / 90 1 in 3000
TST 115 6R 20 115 8.0 50 / 75 1 in 1000
TST 115 10R 20 115 8.0 50 / 75 1 in 3000
TST 150 6R 38 150 10.0 40 / 60 1 in 1000
TST 175 6R 60 175 12.0 30 / 50 1 in 1000

Note: We also offer machines based on customised requirements.
