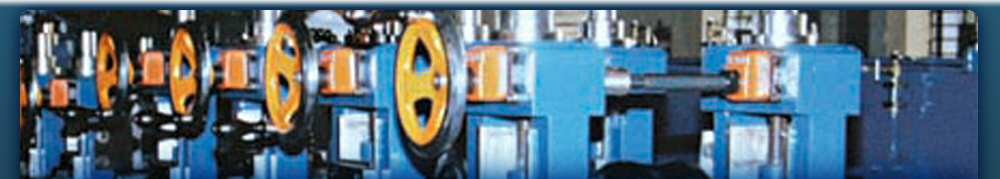

High Speed Tube Mills
10-220 mm OD x 0.5-8.2 mm thickness up to 120m/min speed
Tube Mills for carbon steel : With various options for automation
Tube Mills for stainless steel : With High Frequency Welding

Tube Mills for Carbon Steel
With various options for automation

Model Tube OD (mm) Tube Thickness (mm) Max Line Speed (m/min)
Min Max Min Max
TTM 025 SL 9.53 25.4 0.3 1.0 100
SM 0.5 2.0 100
TTM 038 SM 12.7 38.1 0.6 2.5 100
XM 0.6 2.5 120
TTM 050 SM 12.7 50.8 0.7 3.0 100
XM 0.7 3.0 120
TTM 076 SM 15.88 76.2 0.8 3.2 100
XM 0.8 3.2 120
SH 21.3 76.2 1.0 4.5 100
TTM 090 SM 21.3 88.9 1.0 4.8 100
XH 1.2 6.5 80
TTM 115 SM 33.7 114.3 1.2 5.4 100
XH 31.75 114.3 1.2 7.0 80
TTM 127 SM 31.75 127.0 1.2 6.0 80
TTM 165 SM 60.3 168.3 1.6 7.0 60
TTM 220 SM 88.9 219.3 2.0 8.0 40

Note: We also offer machines based on customised requirements.


Cold Saw Cut Off Machine
For Burr Free Cutting

Tubetech Cold Saw Cut Off machines are numerically controlled having many advantages over the conventional Friction / Hot Saw cutting machines. The cutting principal is based on machining operation instead of melting and braking due to heat generated by friction between tube and blade.

Features:

  • Burr Free Cutting
  • Accurate Length Control Up to +2 mm
  • High Speed Up to 150 m/min
  • Suitable for both HSS and Carbide blades
  • With Siemens Length Control System
  • Flat / Inclined Bed Design with parallel extra heavy LM guide ways
  • Timing Pulley & Belt Drive system for Smooth Operation
  • Both Side Hydraulic Clamping
  • Servo Controlled Carriage and blade feed
  • Blade rotation through Zero backlash gearbox

Technical Specifications:

Model Tube OD (mm) Tube Thickness (mm) Max Line Speed (m/min)
Min Max Min Max
TCS 40 9.53 38.10 0.5 2.5 150
TCS 60 12.70 63.50 0.7 3.6 120
TCS 80 19.05 81.20 0.8 4.0 100
TCS 100 25.4 101.6 1.0 4.0 80

Note: We also offer machines based on customised requirements.




Tube Mills for Stainless Steel
With High Frequency Welding

Model Tube OD (mm) Tube Thickness (mm) Max Line Speed (m/min)
Min Max Min Max
TTM 025 SS TIG 9.53 25.4 0.4 1.5 6
SS HF 50
TTM 038 SS TIG 12.7 38.1 0.5 2.0 6
SS HF 50
TTM 050 SS TIG 12.7 50.8 0.6 2.5 6
SS HF 50
TTM 076 SS TIG 15.88 76.2 0.7 3.0 6
SS HF 50
TTM 115 SS TIG 33.7 114.3 1.0 4.0 6
SS HF 40

Note: We also offer machines based on customised requirements.
